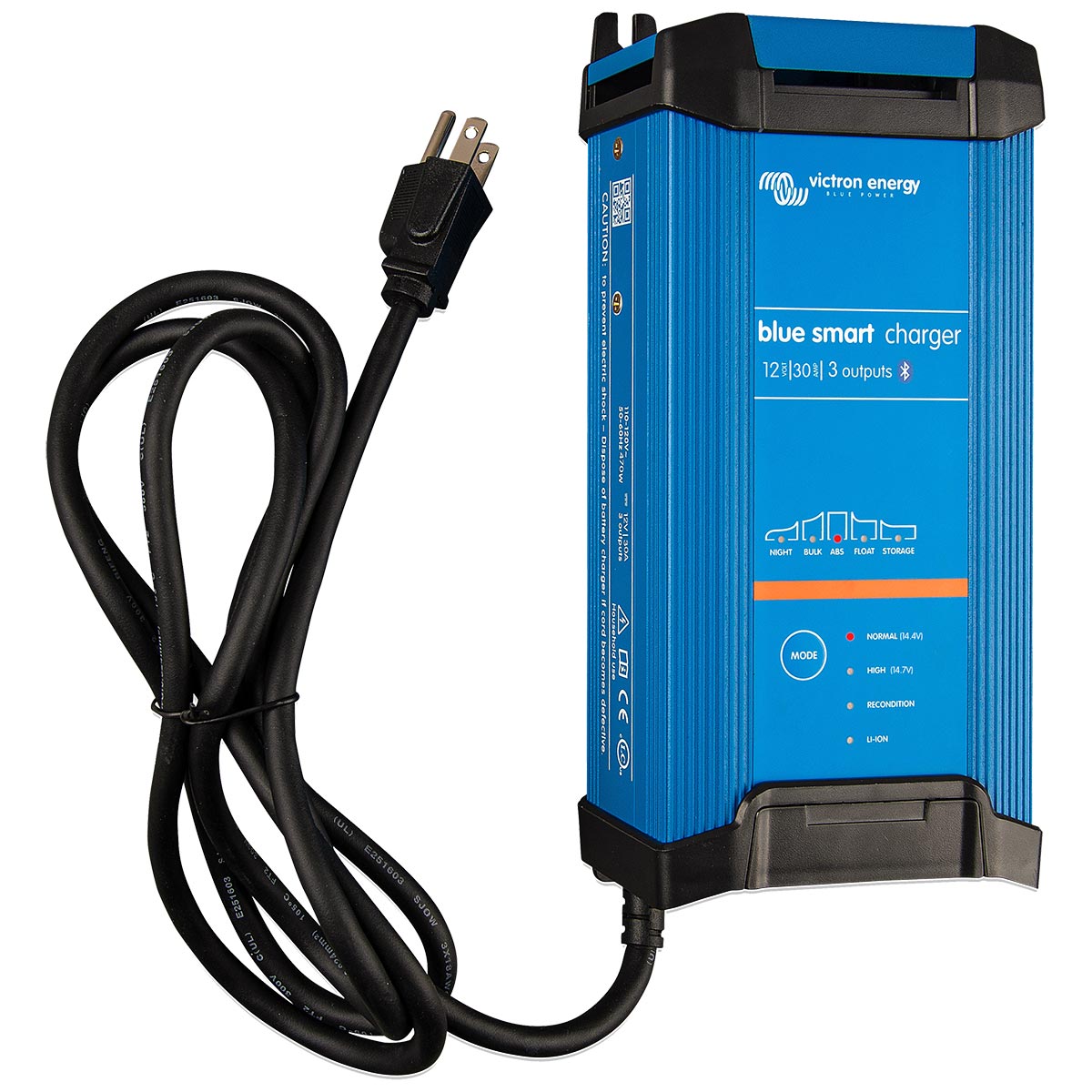

Victron Blue Smart IP22 Charger 12/30(3) 120V NEMA 5-15

The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
With 3 Outputs.

Blue Smart IP22 12VDC 30A 3 Bank 120V Charger – Dry Mount
VE.Smart Network enabled
Input Voltage: 100 – 130V AC
Number of outputs: 3
Charge Current (Normal): 30 Amps
Charge Current (Night/Low): 15 Amps
Efficiency: 93%
Frequency: 45 – 65Hz
Standard AC: NEMA 5-15 (Standard AC 3-Prong Plug)
Charge ‘absorption’: Normal 14.4 Volts / High 14.7 Volts /Li-Ion 14.2 Volts
Charge ‘float’: Normal 13.8 Volts / High 13.8 Volts /Li-Ion 13.5 Volts
Charge ‘Storage’: Normal 13.2 Volts / High 13.2 Volts /Li-Ion 13.5 Volts
Charge algorithm: 6-stage adaptive
Protection: Reverse Polarity / Short Circuit / Over Temperature
Battery connection: Screw terminals 6AWG / 16 mm
Protection category: IP22
DIM (H x W x D): 9.7″ x 4.3″ x 2.6″

Bluetooth Smart
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0.5 Watt, some five to ten times better than the industry standard.

Adaptive 6-stage charge algorithm: test – bulk – absorption – recondition – float – storage
The Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Eleven LEDs for status indication
Protected against overheating
